Arrowhead Dipole Broadcast Panel Antenna

The Jampro JAHD Arrowhead Dipole broadcast panel antenna is an excellent choice for TV stations. Especially those looking for stability and excellent control over axial ratio. Bands I, II (FM) and III supported by the JAHD antenna. It is easily adaptable for multi-station use.

Arrowhead Dipole Broadcast Panel Antenna

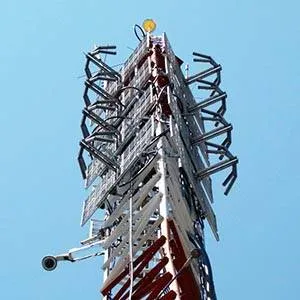

In addition, the antenna design allows mounting on the side of a large tower or large supporting structure. Also, the power rating is 10 kW per panel, however higher powers are available. The JAHD VHF Panel Antenna is a side-mount antenna. Moreover, various azimuth and elevation patterns are configurable.

Additionally, beam tilt and null fill provide an elevation pattern shaped to maximize coverage. Circular polarization antennas deliver varied levels of vertical polarization. Results range from small amounts of elliptical polarization to full circular polarization.

Furthermore, this panel antenna can produce a wide variety of standard and custom azimuth patterns. Moreover, it is worth noting that different configurations will produce various gains, weights and wind loads.

HD Capabilities

Furthermore, the Jampro JAHD-HD dual Input HD FM antenna system delivers 50-100 kW ERP. It provides exemplary linearity and power handling capability. HD Radio (I.B.O.C.) hybrid feeds for dipoles mounts at each antenna input. This allows dry air or nitrogen pressurization from the input connectors through to the radiating dipoles. This protects the antenna from damage causing moisture invasion.

HD Radio Logo

Features for Arrowhead Dipole Broadcast Panel Antenna

  • FM & VHF bands I, II (FM) & III.
  • Broadband for multiple channel & frequency operations.
  • Durable & rugged construction of marine brass, stainless steel & hot dipped galvanized steel.
  • Optional fiberglass radome protection.
  • Excellent axial ratio design.
  • HD or DTV ready.

Finally, for more information please call the Jampro team. Alternatively, please leave a message via the Contact us page and we will respond to you as soon as possible.
