3000W FM Bandpass Filter

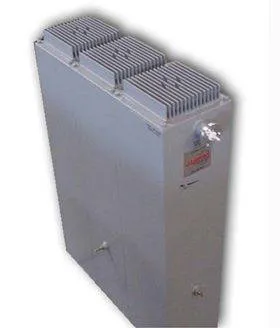

Jampro’s 3000W FM Bandpass Filter provides an Iris Coupled Combline Bandpass Filter. The design also provides superior performance for low power transmitter systems in a modular configuration.  Moreover, filters that can include 2 through 5 sections will be available. Their design, assembly, and testing plus shipping will be included from stock.

3000W FM Bandpass Filter

In addition, almost any value of rejection bandwidth can be provided by the proper selection of the number of sections and coupling iris dimensions. Passband insertion loss also minimizes with the 8” high-Q aluminum cavities.

A 7/8” unflanged connection is standard. Flanged is also provided on request.  This design supports power levels up to 3 KW

3000W FM Bandpass Filter Typical Specification: (RCBC-X9X-FM)

  • Type: 2, 3, 4 Sections.
  • Frequency: 88 to 108 MHz.
  • Power: 3 kW.
  • VSWR: 1.08:1 Max  ± 150 kHz.
  • Insertion Loss: 0.75 dB Max ± 200 kHz (0.50 dB Typical).


  • 2-Section 30 dB ± 4.0 MHz
  • 3-Section 30 dB ± 1.6 MHz.
  • 4-Section 30 dB ± 1.0 MHz.
